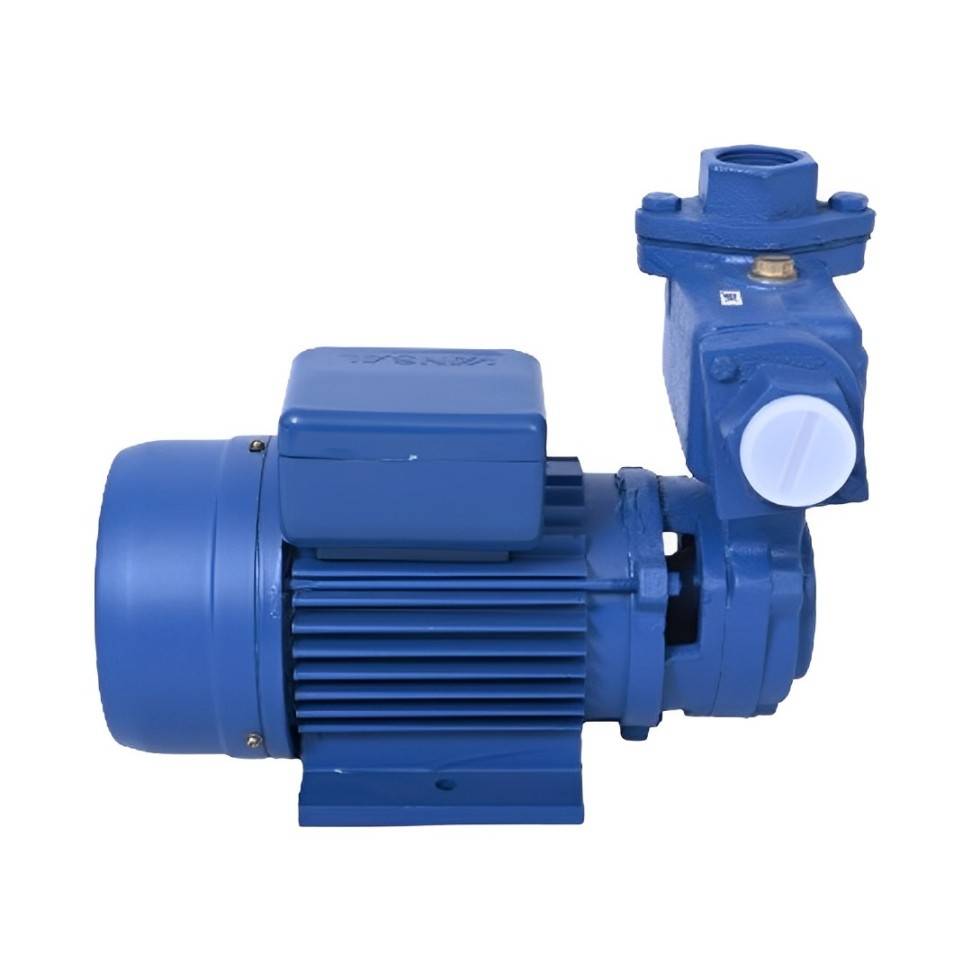

AC 150
- Unique brass insert on pump body & pumpy (only in AC 110) which prevents jamming.
- Extremely hard forged brass impeller.
- High tolerance in presence of air mixed with liquid.
- Can stand wide voltage fluctuations (170-250v).
Description
| MODEL | POWER 220V, 50HZ. |
FLOW (L/MIN.) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| AC 150 | 1 HP | HEAD(M) | 55 | 50 | 45.5 | 40.5 | 36 | 31 | 26 | 22 | 17 | 12.5 | 8 |
Construction Details
- Pressure die cast motor body.
- Fitted with imported T.O.P.
- Hardened stainless steel shaft.
- Double sealed ball bearing lubricated for life.
- Forged brass impeller.
- Pipe Size : 25mm X 25mm
- Fighter, Shakti and AC110/SP can work easily on invertors.
Salient Features
- Unique brass insert on pump body & pumpy (only in AC 110) which prevents jamming.
- Extremely hard forged brass impeller.
- High tolerance in presence of air mixed with liquid.
- Can stand wide voltage fluctuations (170-250v).
Can Withstand Wide Voltage Fluctuation (170v-270v)
